Threaded Oil Cups

Adamslube are one of the premier Threaded Oil Cups distributors in the UK and worldwide. If you are looking for oilers, lubricators and centralised lubrication systems, or distributors for use in industrial applications please contact us today. We have distributors in over 35 locations worldwide and can assist you with all of your oiling and lubrication needs for industry.

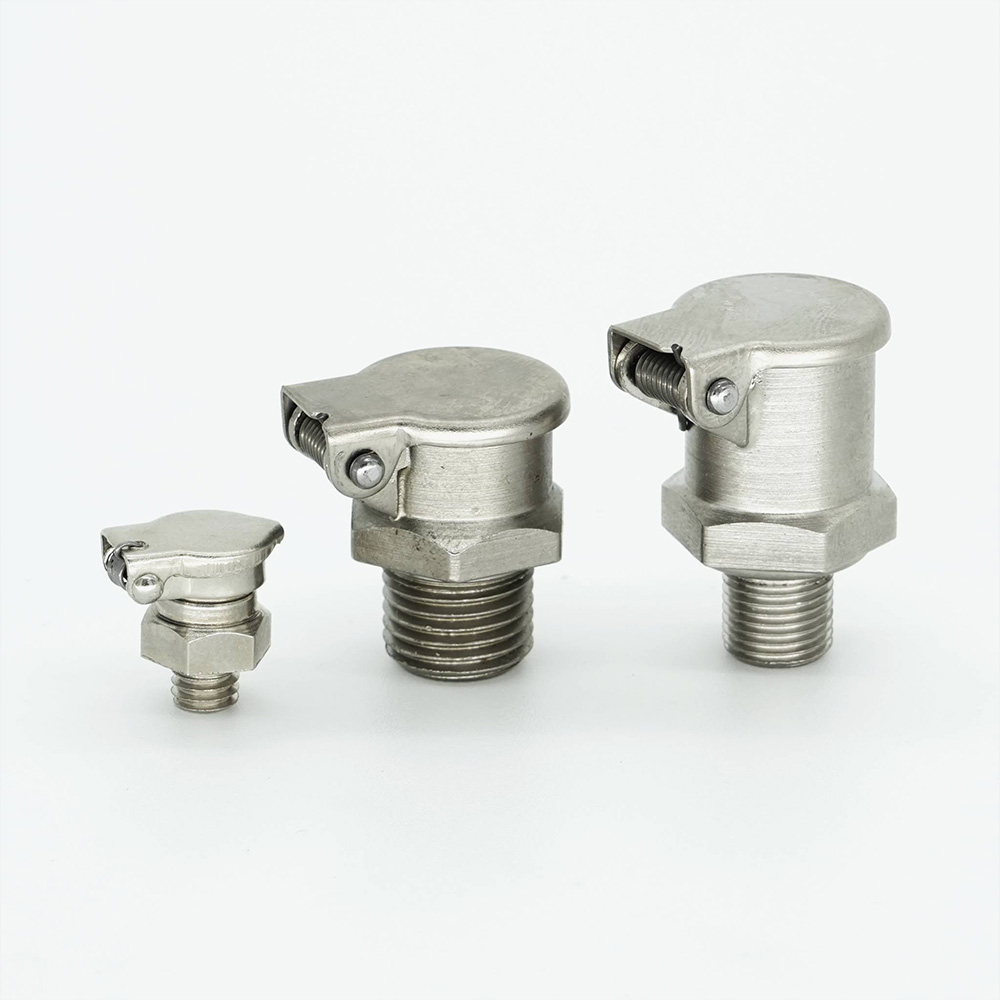

THREADED OIL CUPS



Material – Body – BRASS Filler – STEEL Finish – NICKEL PLATE

* ADD SUFFIX ‘WF’ IF SYPHON TUBE & WICK IS REQUIRED

Product Code A B mm C mm D mm E mm Hex A/Flats
C1730
C1732
C1733
C1735
C1736
C1748
C1749
C1750
C1752
C1763
C1764
C1787
*C2141
3/16″ – 32 TPI
1/4″ – 32 TPI
1/4″ – 26 TPI
10 – 32 TPI
2 BA
3/8″- 24 TPI
1/8″ BSP
1/8″ NPT
7/16″- 24 TPI
1/4″ BSP
1/4″ NPT
1/8″ BSP
1/8″ BSP
4.8
4.8
5.6
4.8
4.8
6.4
6.4
6.4
7.1
11.1
11.1
38.1
9.5
14.3
14.3
20.6
14.3
14.3
17.5
17.5
17.5
18.3
26.2
26.2
50.8
31.8
6.4
6.4
7.1
6.4
6.4
9.5
9.5
9.5
11.1
15.9
15.9
9.5
15.9
15.9
15.9
15.9
15.9
15.9
20.6
20.6
20.6
23.8
31.8
31.8
23.8
31.8
5/16″
5/16″
3/8″
5/16″
5/16″
7/16″
7/16″
7/16″
1/2″
11/16″
11/16″
7/16″
11/16″

THREADED OIL CUPS ROTATING SPRING LID

Material – Body – BRASS Finish – NICKEL PLATE
Filler- STEEL

Product Code A B mm C mm D mm E mm Hex A/Flats
C1850
C1851
C1852
C1853
C1855
C1857
*C1867
M5 x 0.8
M6 x 1
M6 x 1
M8 x 1
M10 x 1.5
M12 x 1.5
M8 x 1.25
4.0
5.0
5.0
5.0
6.0
8.0
5.0
15.0
15.0
18.5
18.5
22.0
27.5
18.5
7.5
7.5
9.5
9.5
12.5
15.0
9.5
16.0
16.0
19.0
19.0
22.0
27.0
19.0
8mm
8mm
10mm
10mm
14mm
17mm
10mm

THREADED OIL CUPS

Material – STEEL Finish – NICKEL PLATE

ADD SUFFIX ‘WF’ IF SYPHON TUBE AND WICK IS REQUIRED

Product Code A B mm C mm D mm E mm Hex A/Flats
D 1914
D1920
D1921
D1927
D1928
D1937
D1938
D1952
D1958
D1959
D1960
D1961
1/8″ BSP
1/8″ BSP
1/8″ NPT
1/8″ BSP
1/4″ BSP
1/8″ BSP
1/4″ BSP
1/4″ BSP
1/4″ BSP
3/8″ BSP
1/2″ BSP
3/8″ NPT
17.5
17.5
17.5
20.6
20.6
20.6
23.8
23.8
28.6
29.4
31.8
28.6
36.5
39
41.3
47.6
47.6
53
53
68.3
85.7
85.7
88.9
85.7
15.9
19.1
19.1
25.4
25.4
31.75
31.75
41.3
57.2
57.2
57.2
57.2
31.8
34.9
34.9
41.3
41.3
41.3
41.3
63.5
79.4
79.4
79.4
79.4
7/16″
7/16″
7/16″
9/16″
9/16″
9/16″
9/16″
11/16″
11/16″
11/16″
7/8″
11/16″
