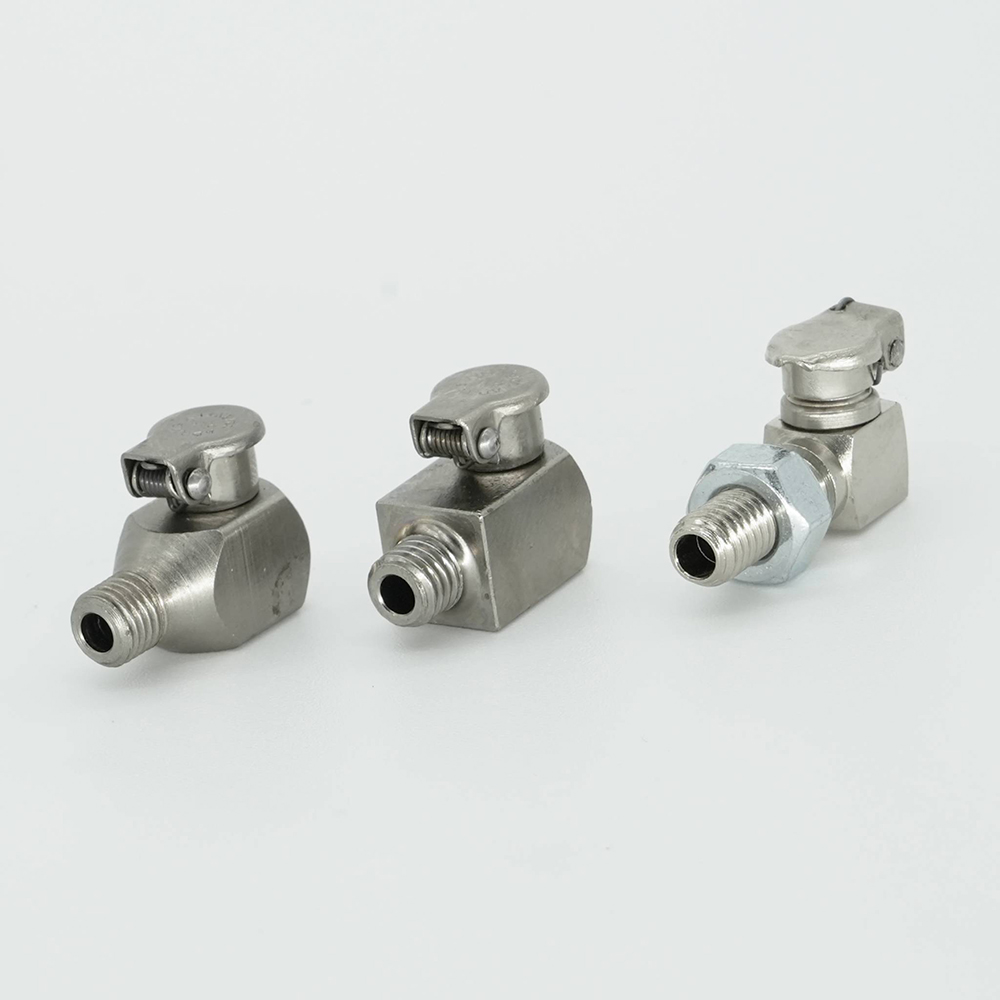

THREADED ELBOW OIL CUP (90 degrees)

Adamslube are one of the premier Threaded Elbow Oil Cup distributors in the UK and worldwide. If you are looking for oilers, lubricators and centralised lubrication systems, or distributors for use in industrial applications please contact us today. We have distributors in over 35 locations worldwide and can assist you with all of your oiling and lubrication needs for industry.



Material – Body-BRASS Filler-STEEL Finish-NICKEL PLATE



Product Code A B mm C mm D mm E mm
L2601
L2602
L2603
L2604
3/16" – 32 TPI
1/4" – 32 TPI
1/4" – 26 TPI
10 – 32 TPI
19.1
19.1
19.1
19.1
14.3
14.3
14.3
14.3
6.4
6.4
6.4
6.4
8.7
8.7
8.7
8.7



THREADED ELBOW OIL CUP (90 degrees)

Material – Body-BRASS Filler-STEEL Finish-NICKEL PLATE



Product Code A B mm C mm D mm E mm
LS2616
LS2630
LS2633
LS2680
LS2681
5/16"- 32TPI
1/8" BSP
3/8" – 24TPI
1/8" NPT
1/8" BSP
23.8
25.4
25.4
34.9
34.9
15.9
20.6
20.6
25.4
25.4
7.9
9.5
9.5
15.9
15.9
10.3
11.9
11.9
14.3
14.3



THREADED ELBOW OIL CUP (90 degrees) ROTATING SPRING LID

Material – Body-BRASS Filler-STEEL Finish-NICKEL PLATE



Product Code A B mm C mm D mm E mm
L2710
L2711
L2712
L2713
M6 x 1
M8 x 1
M10 x 1
M12 x 1.5
24.0
28.0
30.0
34.0
15.0
18.0
20.0
22.0
7.5
9.5
12.5
15.0
13
14
14
15



THREADED ELBOW OIL CUP (90 degrees)

Material-STEEL Finish-NICKEL PLATE

ADD SUFFIX "WF" IF SYPHON TUBE & WICK IS REQUIRED (EXCEPT M3011)



Product Code A B mm C mm D mm Hex A/Flats
M3011
M3017
M3018
M3024
M3024
M3026
M3031
M3032
M3041
M3042
M3064
M3065
1/8" BSP
1/8" BSP
1/8" NPT
1/8" BSP
1/4" BSP
1/4" NPT
1/8" BSP
1/4" BSP
1/4" BSP
3/8" BSP
1/4" BSP
3/8" BSP
33.3
36.5
41.3
46.0
46.0
46.0
52.4
52.4
65.1
65.1
85.7
85.7
26.2
30.2
28.6
35.7
35.7
34.9
40.5
40.5
52.4
52.4
58.7
58.7
15.9
19.1
19.1
25.4
25.4
25.4
31.8
31.8
41.3
41.3
57.2
57.2
7/16"
7/16"
7/16"
9/16"
9/16"
9/16"
9/16"
9/16"
11/16"
11/16"
11/16"
11/16"

* As part of its development the company reserves the right to modify any product or specification without prior notice.
