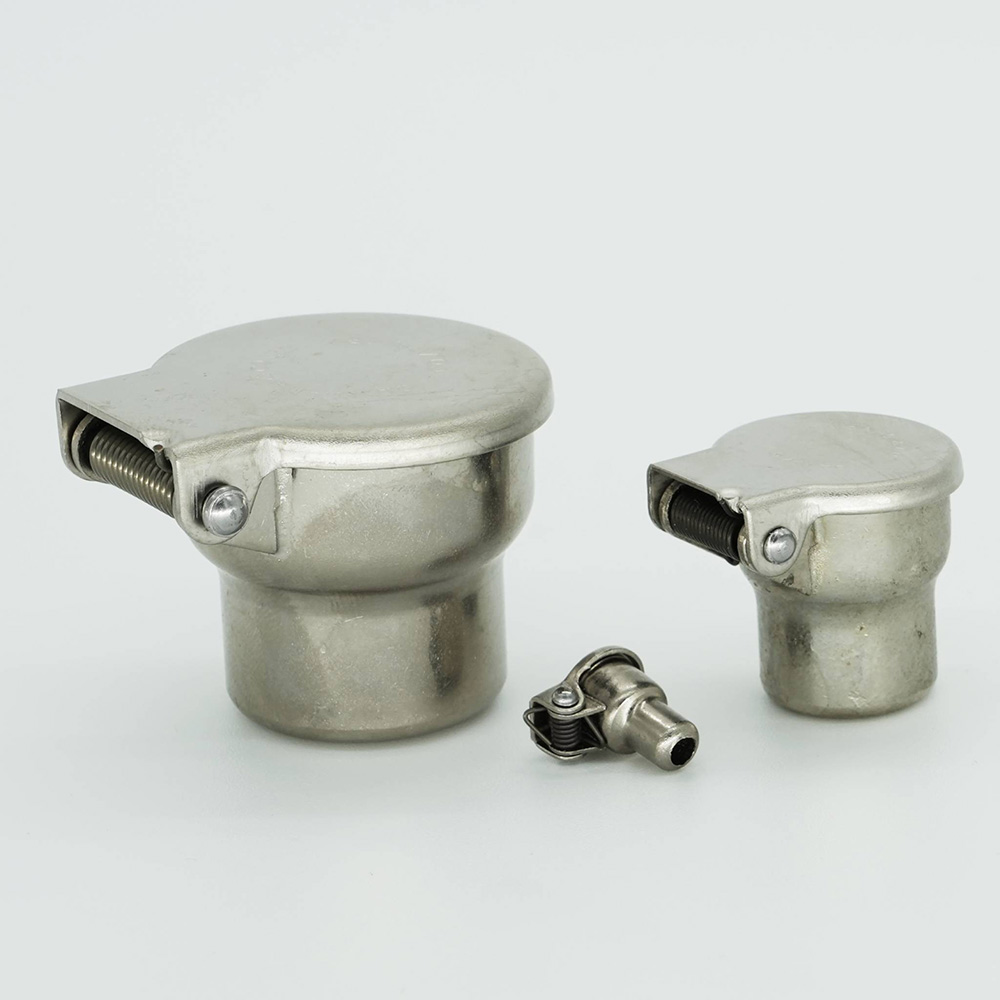

Shoulder Drive Oil Cup
Nickel-plated steel shoulder drive oil cups in imperial and metric hole sizes, from 3/16″ and 6 mm up to 1 1/2″. Add the suffix DC to the part number for a dust-proof cover.
Browse the full Oil Hole Covers & Cups range, or see Drive In Elbow Oil Cup and Threaded Elbow Oil Cup. Need help choosing? Contact us.
SHOULDER DRIVE OIL CUP
Material – STEEL Finish – NICKEL PLATE
* ADD SUFFIX DC IF DUST PROOF COVER IS REQUIRED
| Product Code | Hole Diameter | A | B mm | C mm | D mm | E mm |
| BS1511 BS1512 BS1513 BS1514 BS1516 BS1518 BS1521 BS1523 BS1536 BS1549 BS1555 BS1556 BS1560 *BS1573 *BS1574 |
1/4" 3/16" 6mm 3/16" 5/16" 7mm 3/8" 8mm 10mm 5/8" 3/4" 7/8" 1" 1 1/4" 1 1/2" |
0.253 – 0.255" 0.190 – 0.192" 6mm Taper 3/16" Taper 0.315 – 0.317" 7mm Taper 0.378 – 0.380" 8mm Taper 10mm Taper 0.628 – 0.630" 0.753 – 0.755" 0.878 – 0.880" 1.003 – 1.005" 1.253 – 1.255" 1.503 – 1.507" |
5.6 5.6 5.6 5.6 6.4 6.4 7.1 7.1 7.1 9.5 11.1 12.7 14.3 17.5 17.5 |
11.9 11.9 11.9 11.9 13.5 13.5 15.1 15.1 18.3 23.8 27.0 28.6 33.3 38.1 38.1 |
7.2 7.2 7.2 7.2 8.9 8.9 10.5 10.5 12.7 19.0 25.4 25.4 31.8 41.3 41.3 |
15.9 15.9 15.9 15.9 19.1 19.1 20.6 20.6 25.4 34.9 41.3 41.3 47.6 63.5 63.5 |
