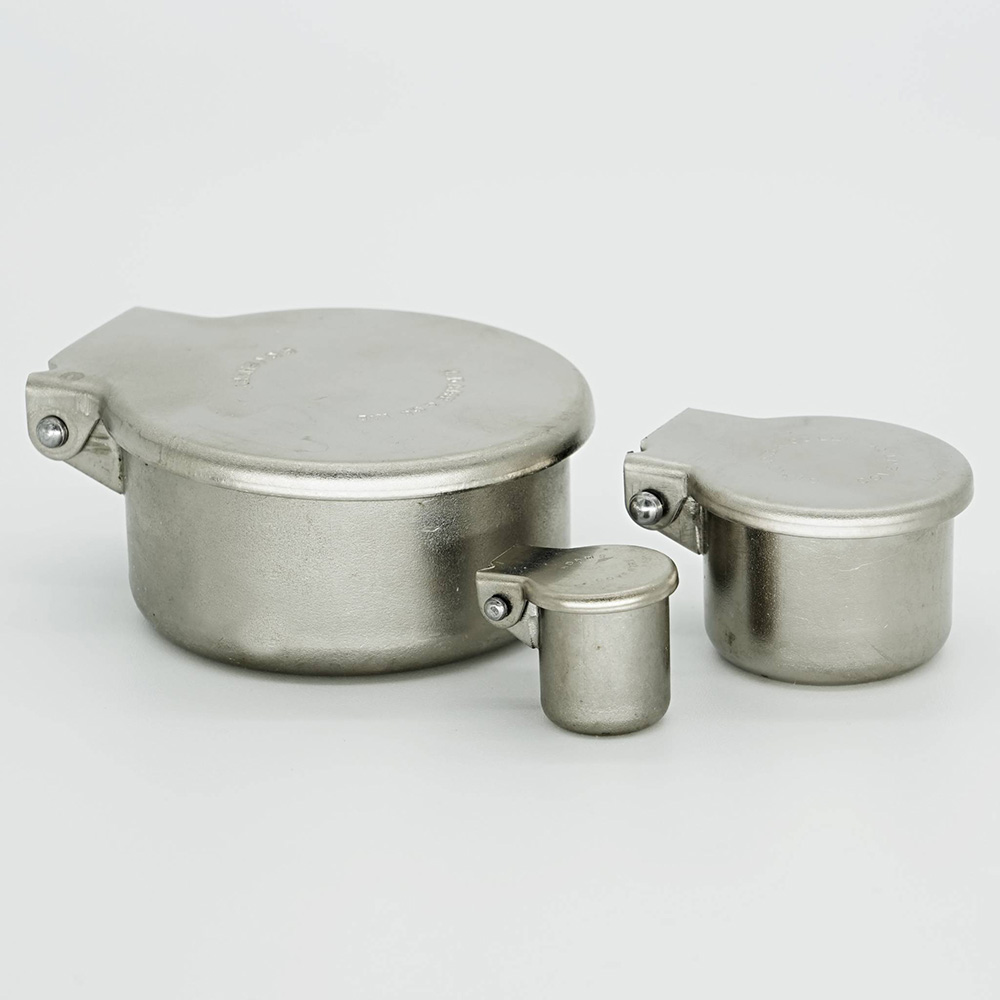

Drive In Oil Cups
Nickel-plated steel drive-in oil cups for hole sizes from 1/4″ to 2 1/4″. Add the suffix DC to the part number for a dust-proof cover.

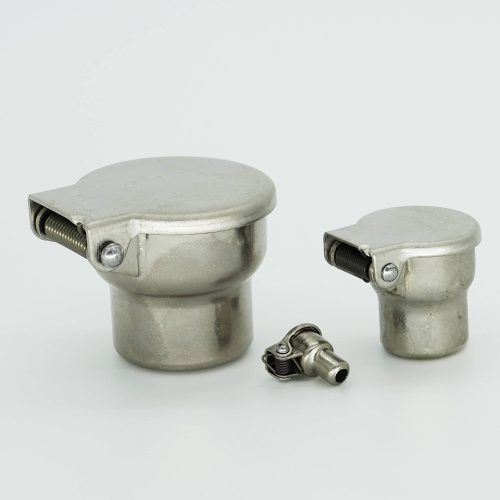

Browse the full Oil Hole Covers & Cups range, or see Shoulder Drive Oil Cup and Drive In Elbow Oil Cup. Need help choosing? Contact us.
DRIVE IN OIL CUPS
Material – STEEL Finish – NICKEL PLATE
* ADD SUFFIX DC IF DUST PROOF COVER IS REQUIRED
| Product Code | Hole Diameter | A | B mm | C mm | D mm |
| B1604 B1614 B1620 B1623 B1625 B1628 *B1640 *B1650 |
1/4" 1/2" 5/8" 3/4" 1" 1 1/4" 1 3/4" 2 1/4" |
0.253 – 0.255" 0.503 – 0.505" 0.628 – 0.630" 0.753 – 0.755" 1.003 -1.005" 1.253 – 1.256" 1.753 – 1.757" 2.253 – 2.258" |
36.5 9.5 10.3 13.5 14.3 15.9 14.3 20.6 |
41.3 16.7 19.1 23.8 25.4 27.0 25.4 31.8 |
15.9 25.4 31.8 34.9 41.3 47.6 69.9 79.4 |
