Oil Windows

Adamslube are one of the premier distributors in the UK and worldwide. If you are looking for oilers, lubricators and centralised lubrication systems, or Oil Windows distributors for use in industrial applications please contact us today. We have distributors in over 35 locations worldwide and can assist you with all of your oiling and lubrication needs for industry.

Enquire now

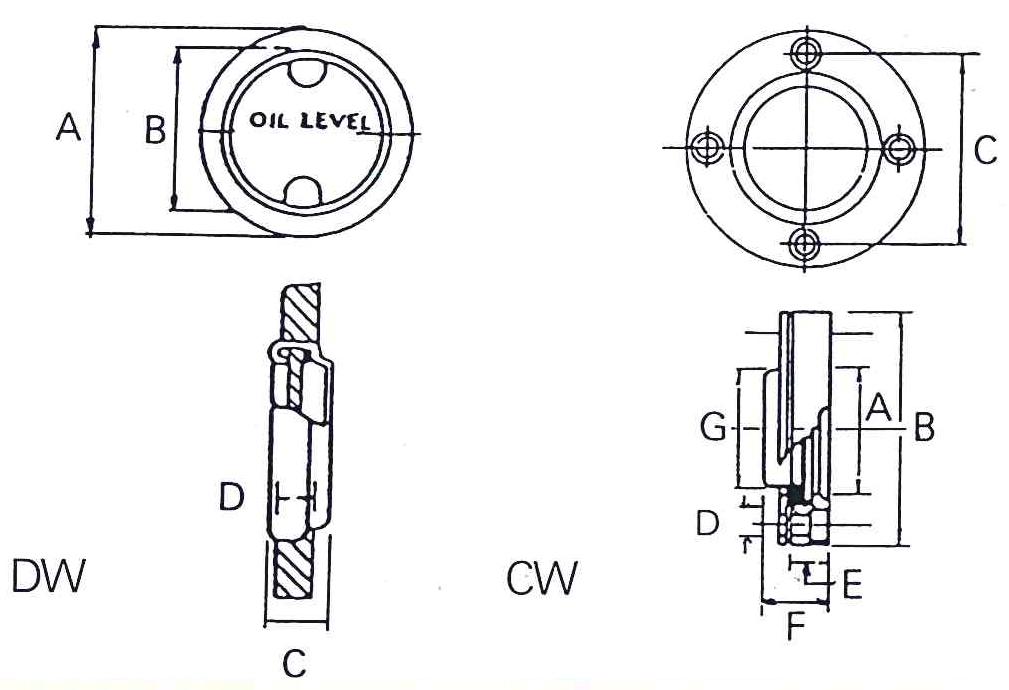

DRIVE IN

Material – STEEL, PERSPEX Finish – ZINC PLATE
Maximum Working Pressure 0. 7 bar.
Maximum Working Temperature 70 degree C with 0 . 2 bar pressure



Product Code Hole Diameter A B mm C mm D mm
DW4064
DW4061
DW4062
DW4063		 22.23 – 22.28
31.75 – 31.80
38.10 – 38.15
50 . 80 – 50.85		 22.30 – 22.35
31. 83 – 31.88
38.18 – 38.23
50.88 – 50.93		 17.5
25.4
31.8
44.5		 7.1
8.7
9.5
10.8		 0.4
0.4
0.4
0.4

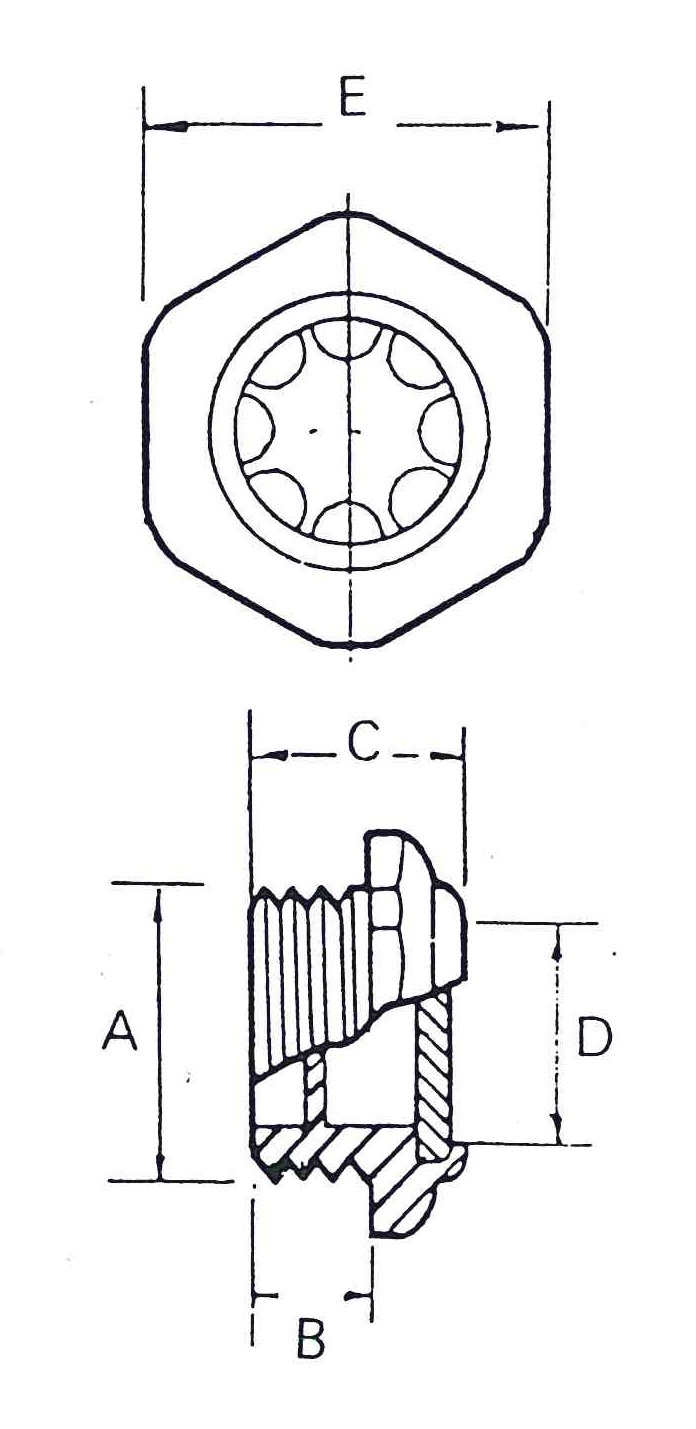

PLEXIGLASS, ALUMINIUM BODY



Maximum Working Pressure 3.5 bar.
Maximum Working Temperature 70 degree C



Product Code A B mm C mm D mm E mm
AW1145
AW1150
AW1155
AW1160
AW1165
AW1170
AW1175		 1/4 BSP
3/8 BSP
1/2 BSP
3/4 BSP
1 BSP
1.1/4 BSP
1.1/2 BSP		 8
8
9
10
14
14
14		 15
16
17
20
24
24
24		 8
11
15
20
25
33
38		 17
22
27
32
41
50
55

HEAT RESISTANT GLASS, ALUMINIUM
BODY

Maximum Working Pressure 10 bar.
Maximum Working Temperature 130 degree C



Product Code A B mm C mm D mm E mm
AW1245
AW1250
AW1255
AW1260
AW1265
AW1270
AW1275
AW1280
AW1955
AW1960
AW1964
AW1972
AW1974
AW1977
AW1980
AW1983
AW1993		 1/4 BSP
3/8 BSP
1/2 BSP
3/4 BSP
1 BSP
1 1/4 BSP
1 1/2 BSP
2 BSP
M12 x 1.5
M16 x 1.5
M20 x 1.5
M24 x 2
M26 x 1.5
M27 x 1.5
M30 x 1.5
M33 x 1.5
M42 x 2		 8
8
9
10
14
14
14
14
8
8
9
9
10
10
14
14
14		 15
16
17
20
24
24
24
24
15
16
17
17
20
20
24
24
24		 8
11
15
20
25
33
38
46
8
11
15
15
20
20
25
25
33		 17
22
27
32
41
50
55
70
17
22
27
27
32
32
41
41
50

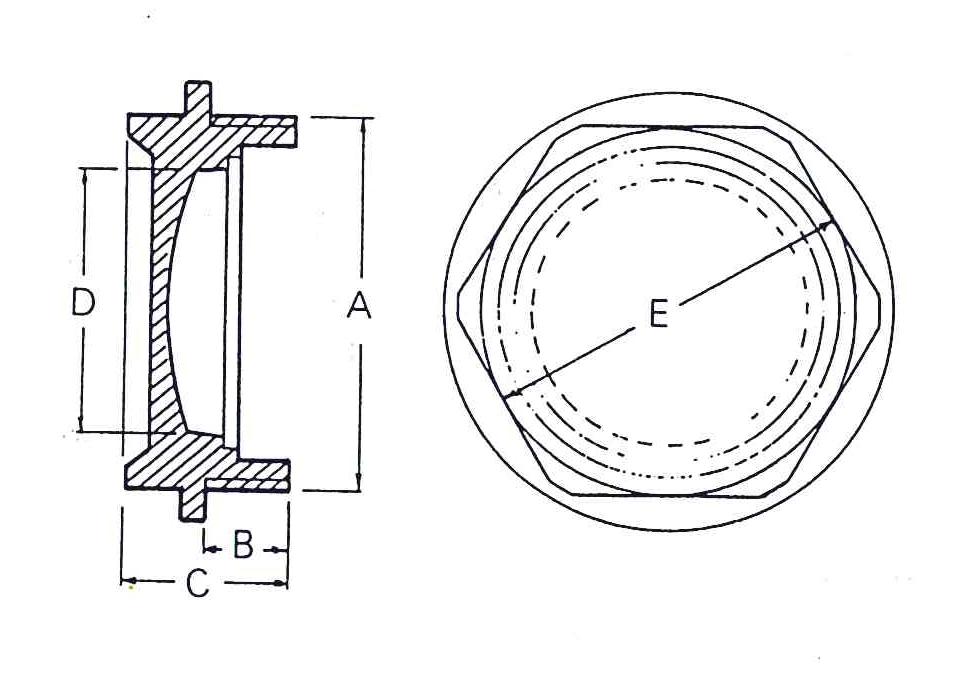

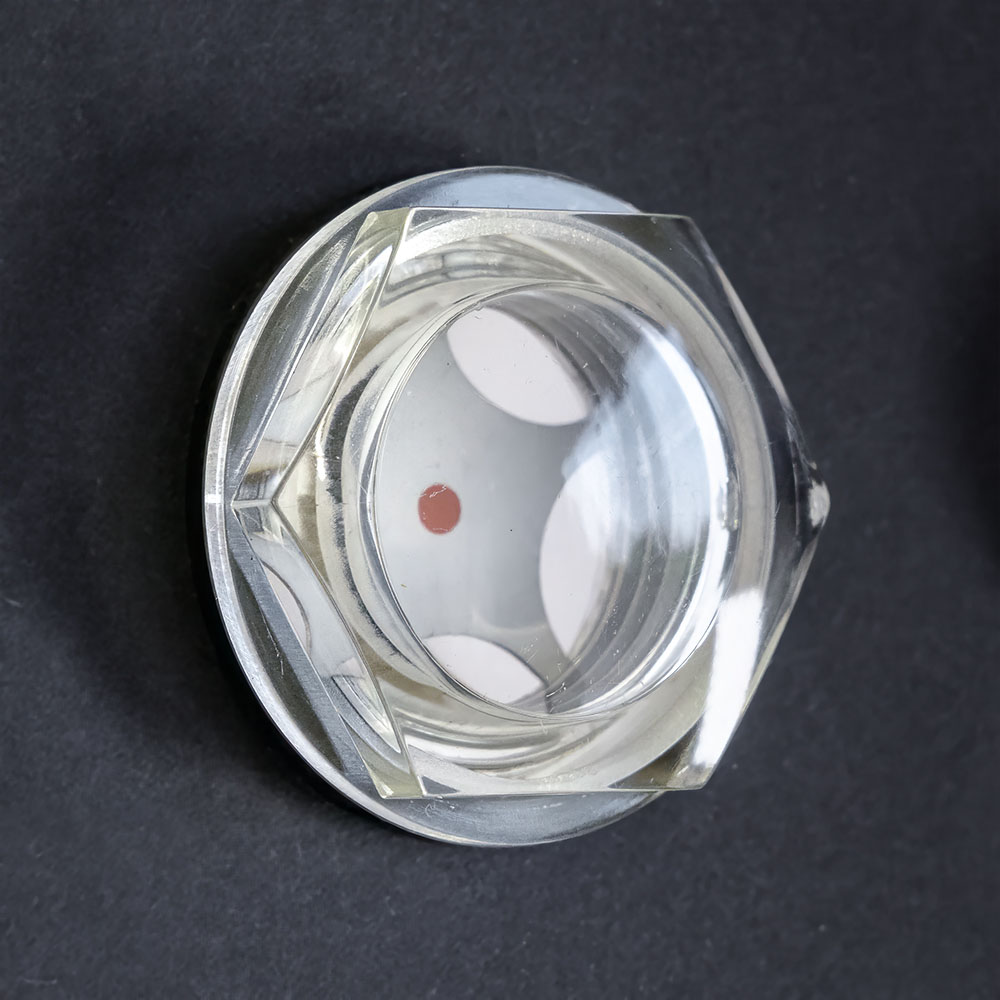

PLASTIC

Material – PLEXIGLASS
Maximum Working Pressure 3 bar.
Maximum Working Temperature 80 degree C



Product Code A B mm C mm D mm E mm
PW4210
PW4211
PW4212
PW4213
PW4214
PW4215
PW4216
PW4217		 1/4 BSP
3/8 BSP
1/2 BSP
3/4 BSP
1 BSP
1 1/4 BSP
1 1/2 BSP
2 BSP		 8.2
9.2
10
12.2
11.6
12.8
13.8
13.8		 13.2
15.7
18
21.2
20.6
22.3
25
26		 6
9
12
16
22
28
33
43		 17
22
24
30
36
46
50
60
PW4520
PW4521
PW4522
PW4523
PW4524
PW4525
PW4526
PW4527
PW4528
PW4529
PW4530		 M12 x 1
M16 x 1.5
M20 x 1.5
M24 x 1.5
M26 x 1.5
M27 x 1.5
M33 x 1.5
M35 x 1.5
M42 x 1.5
M48 x 1.5
M60 x 2		 8.2
9.2
10.0
12.2
12.2
12.2
11.6
11.6
12.8
13.8
13.8		 13.2
15.7
18.0
21.2
21.2
21.2
20.6
22.5
22.3
25.0
26.0		 6
9
12
16
16
16
22
25
28
33
43		 17
22
24
30
30
30
36
41
46
50
60

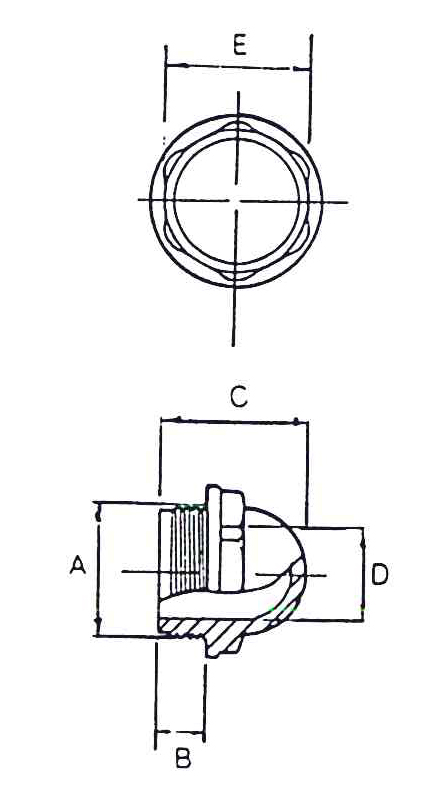

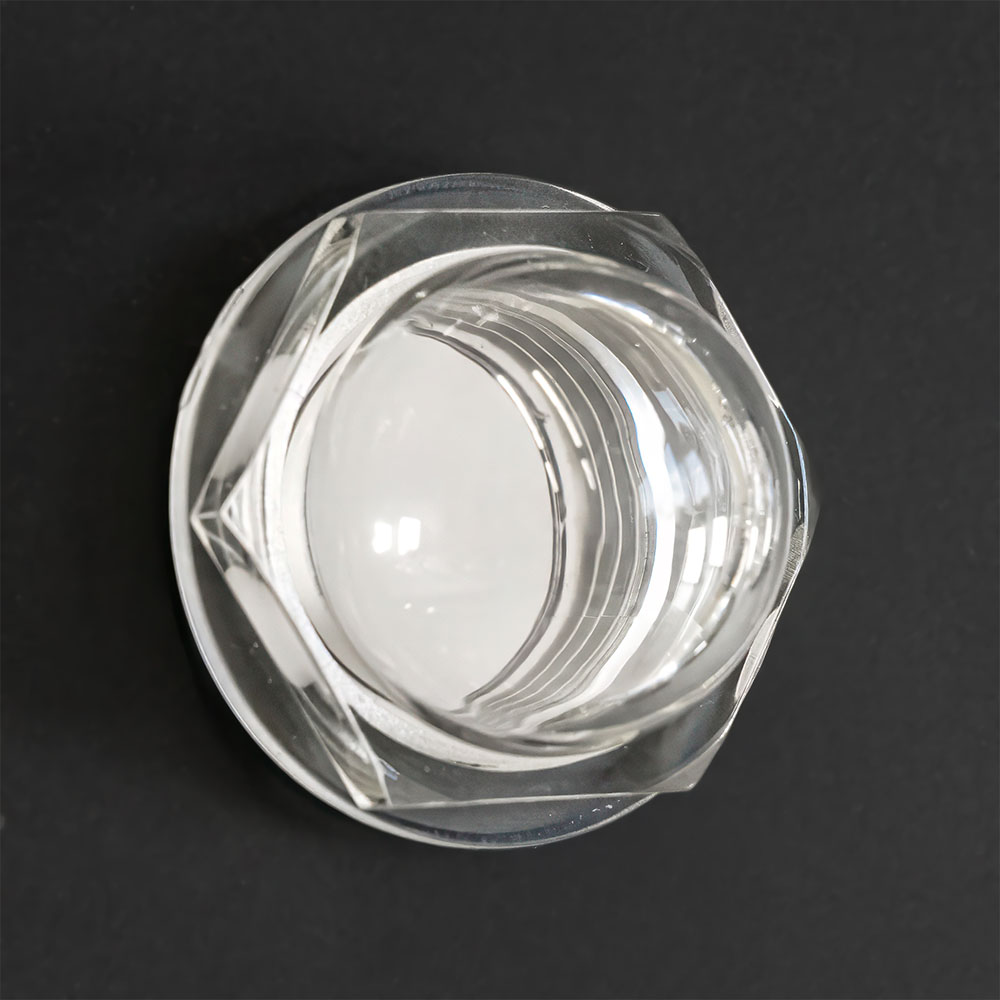

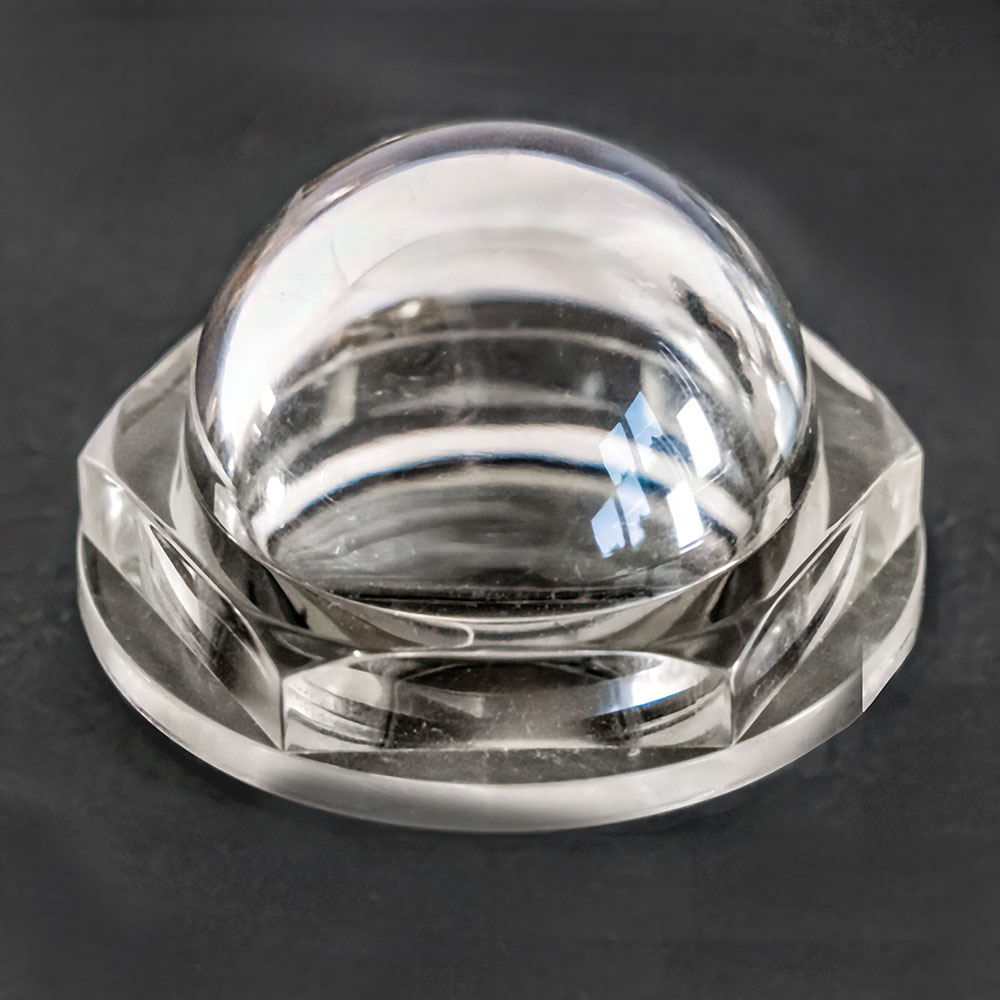

PLASTIC DOMED

Material – POLYCARBONATE
Maximum Working Pressure 3 bar.
Maximum Working Temperature 70 degree C



Product Code A B mm C mm D mm E mm
PR4300
PR4301
PR4302
PR4310
PR4311
PR4312		 1/2 BSP
3/4 BSP
1 BSP
M20 X 1.5
M27 X 1.5
M33 X 1.5		 10
12
12
10
13
12		 30
34
36
30
34
36		 14
20
23
14
16
22		 24
30
36
24
30
36

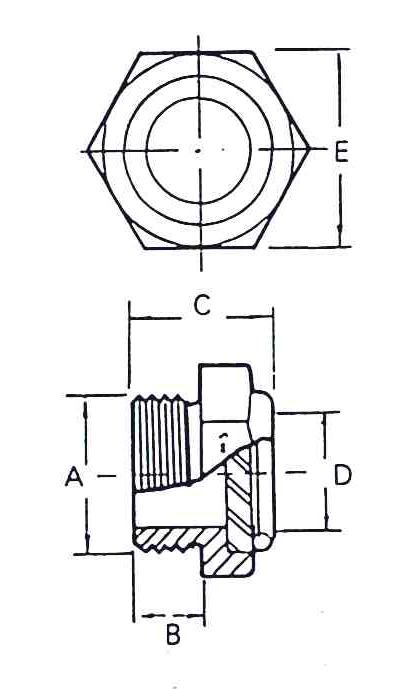

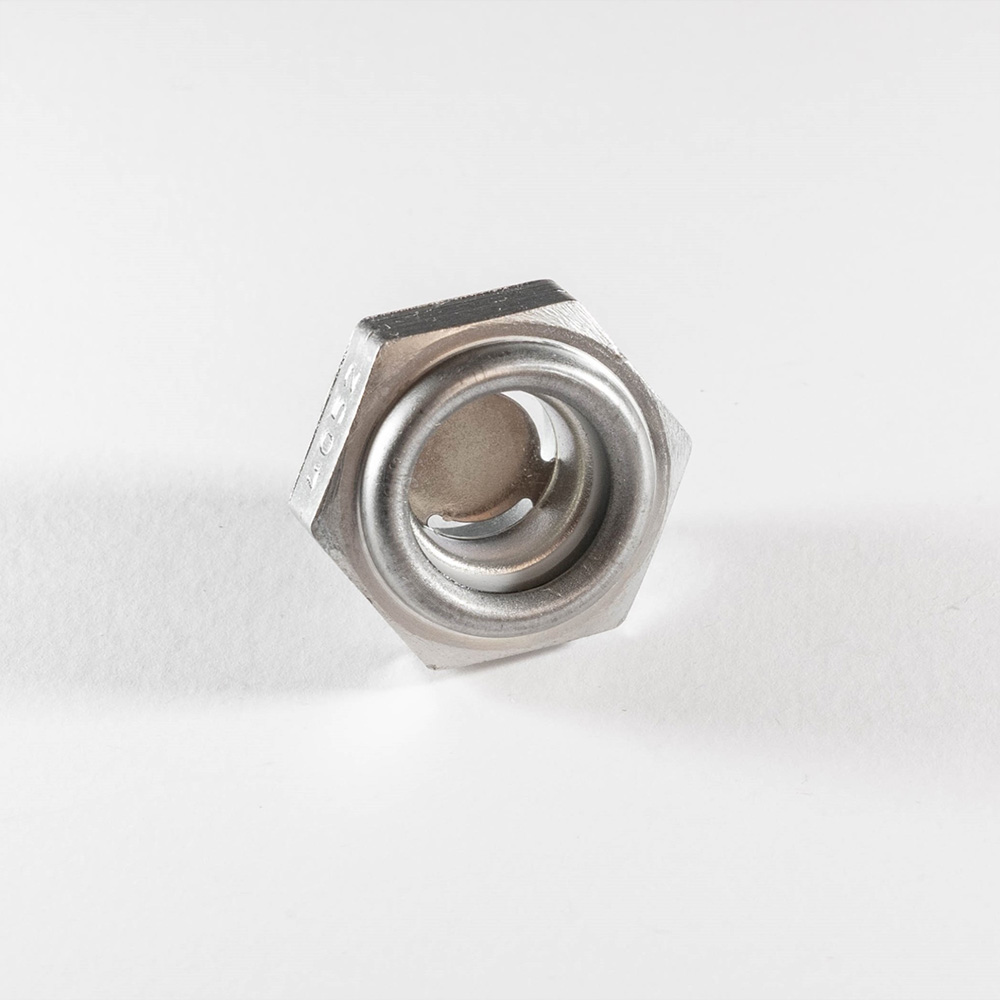

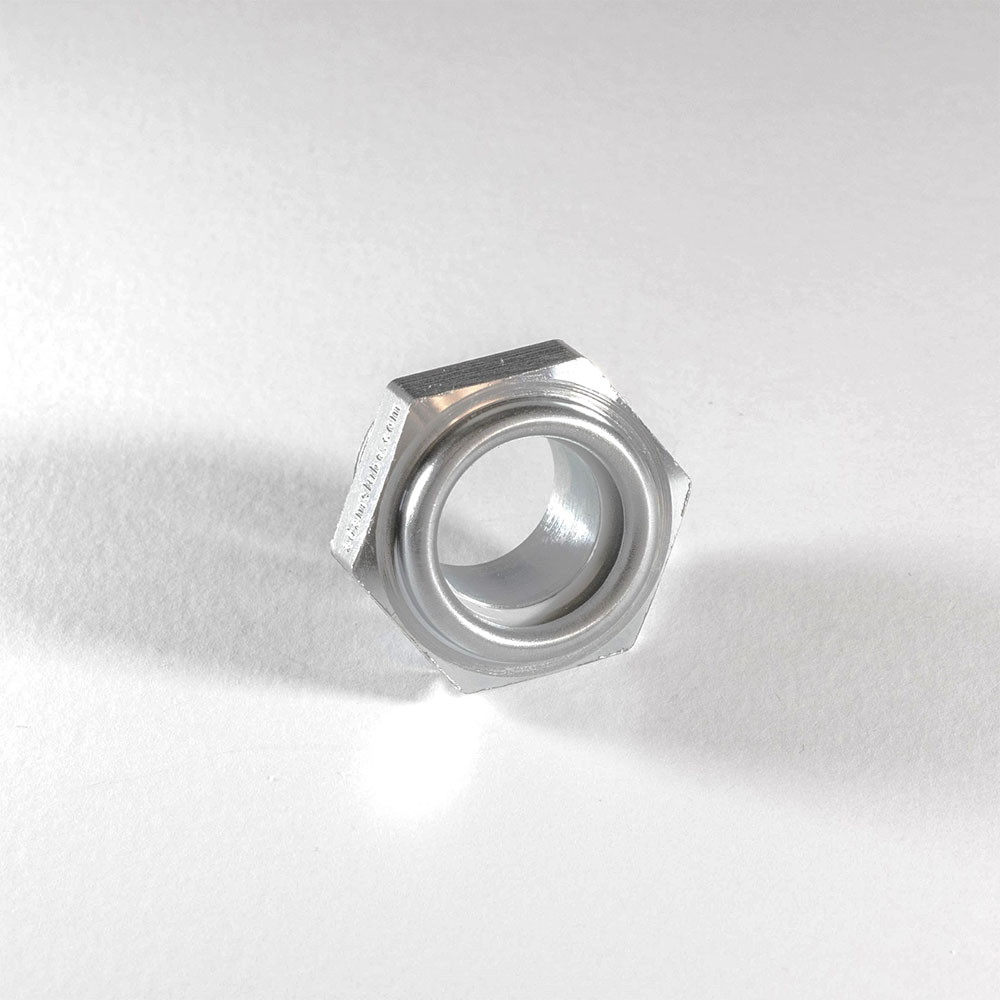

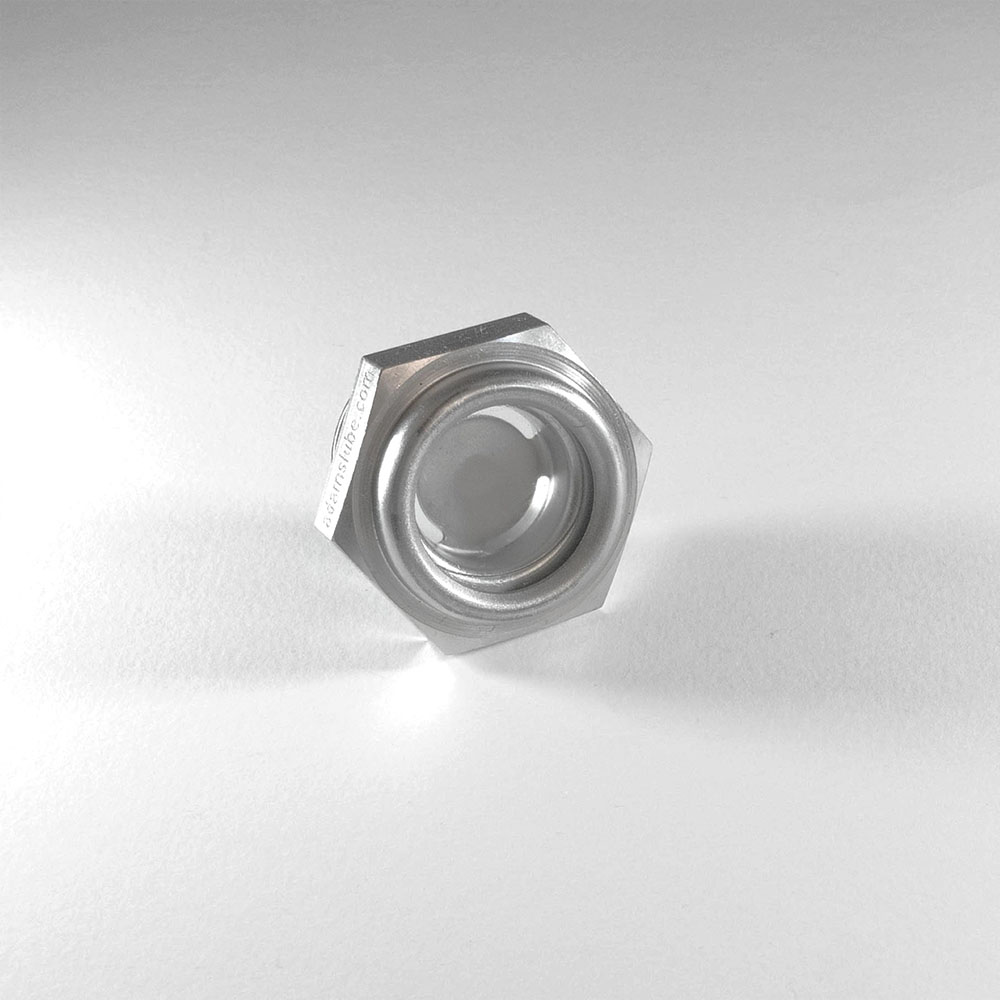

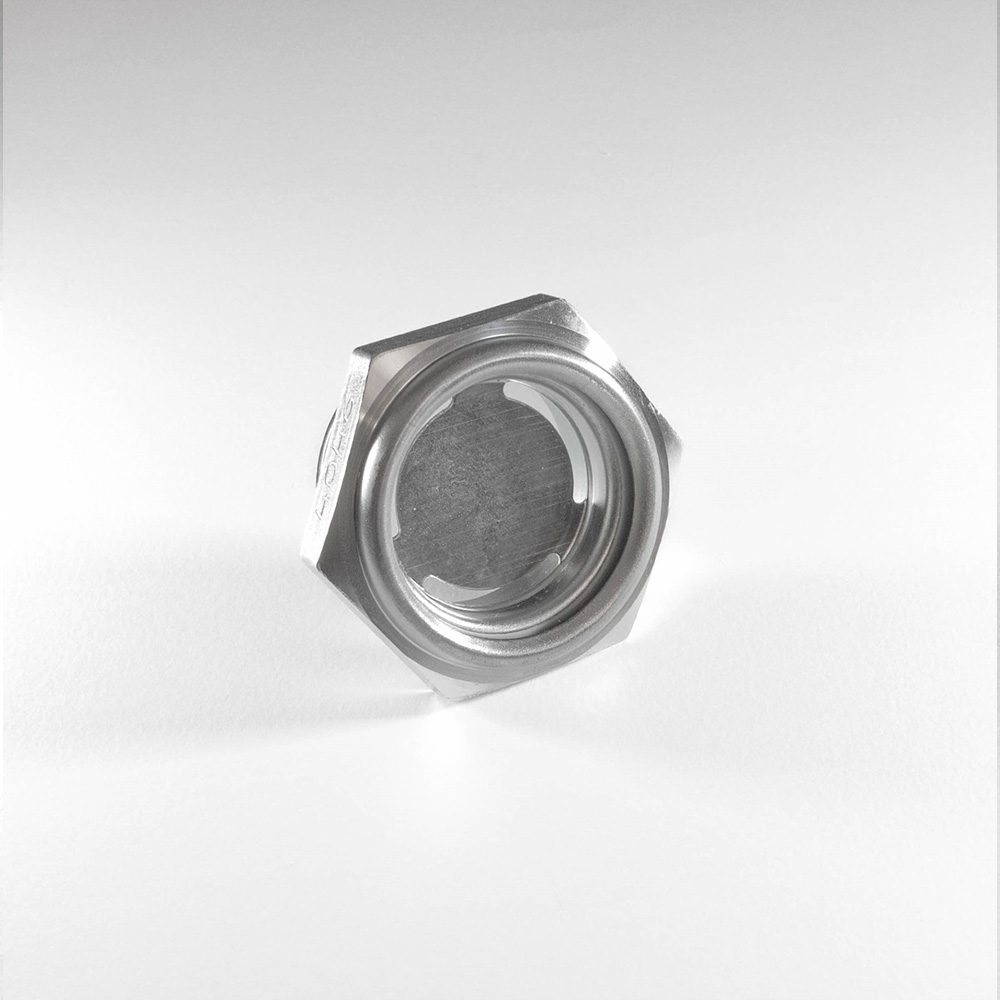

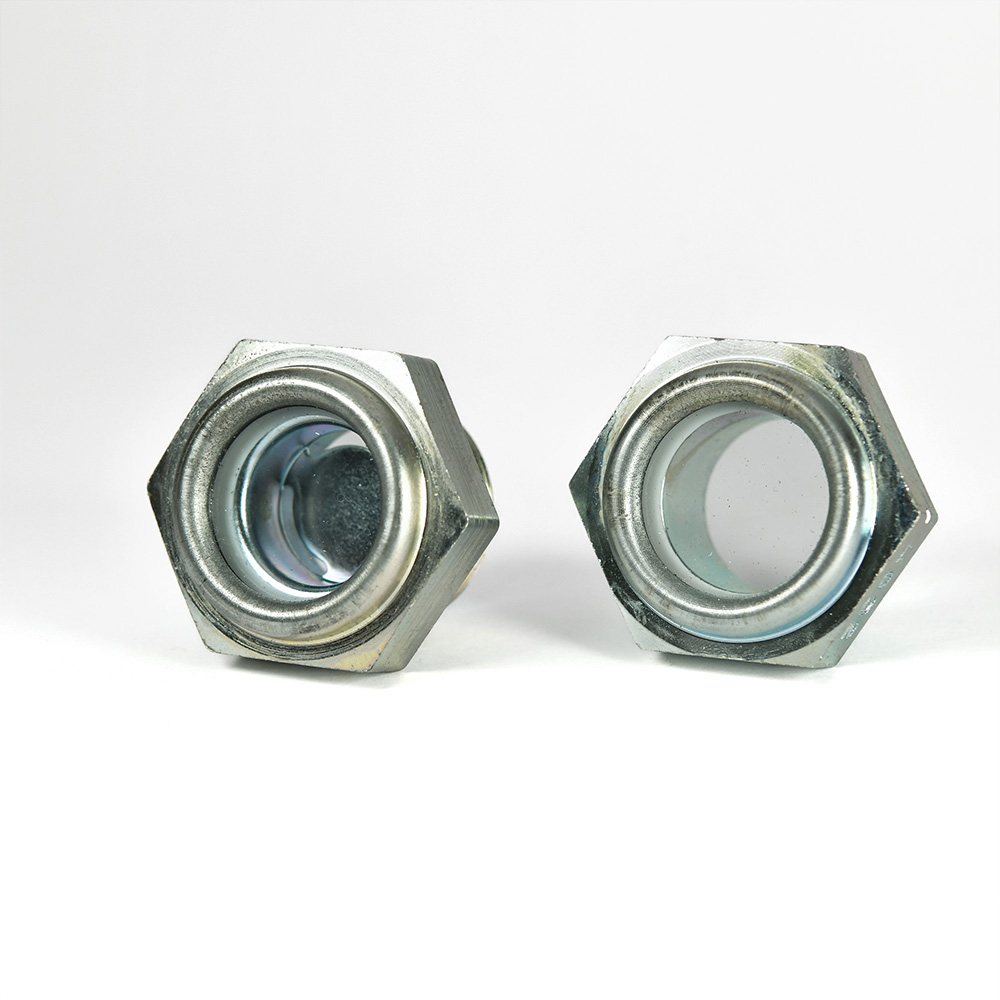

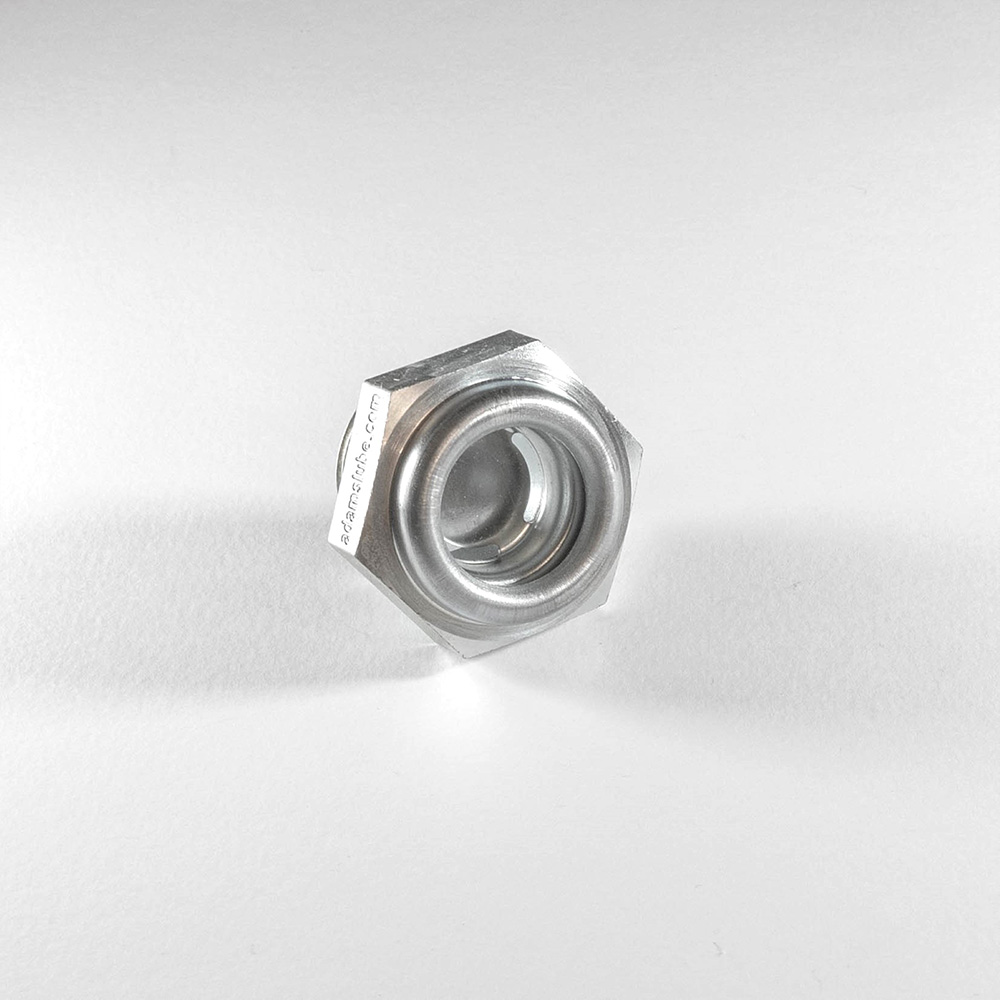

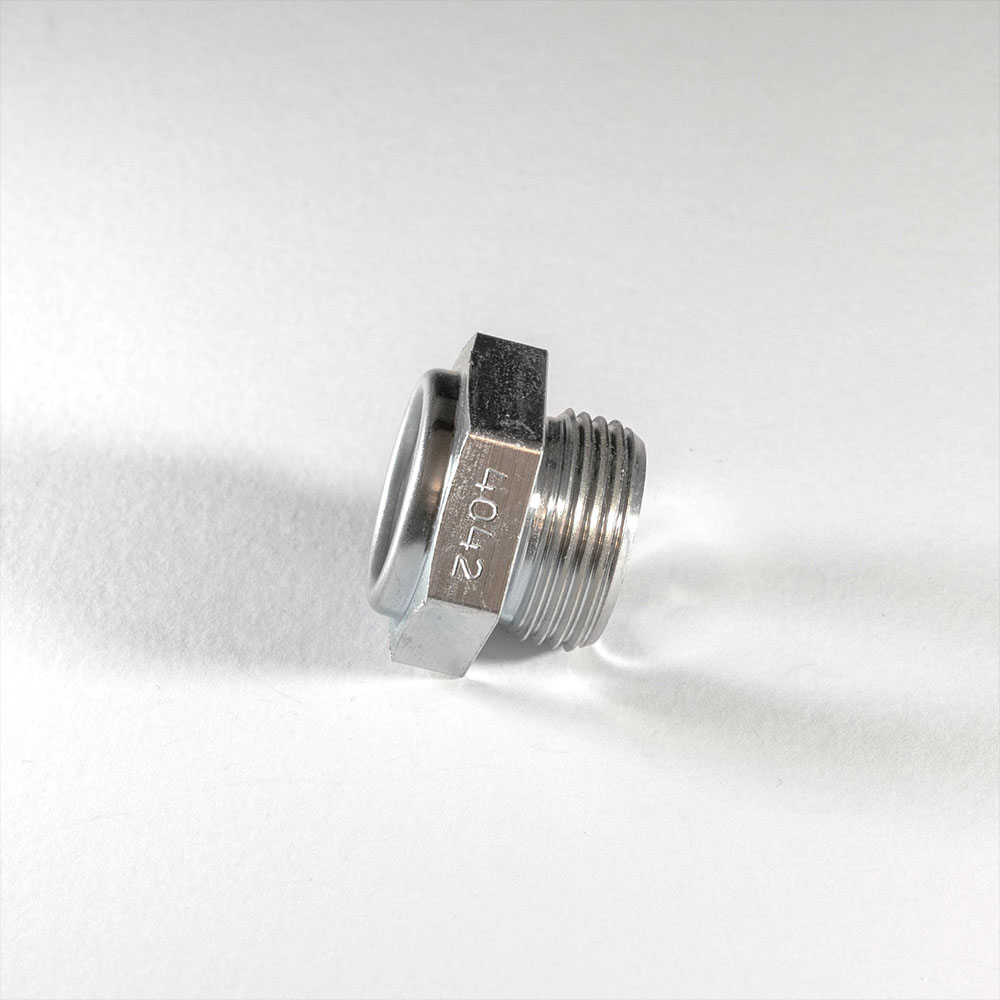

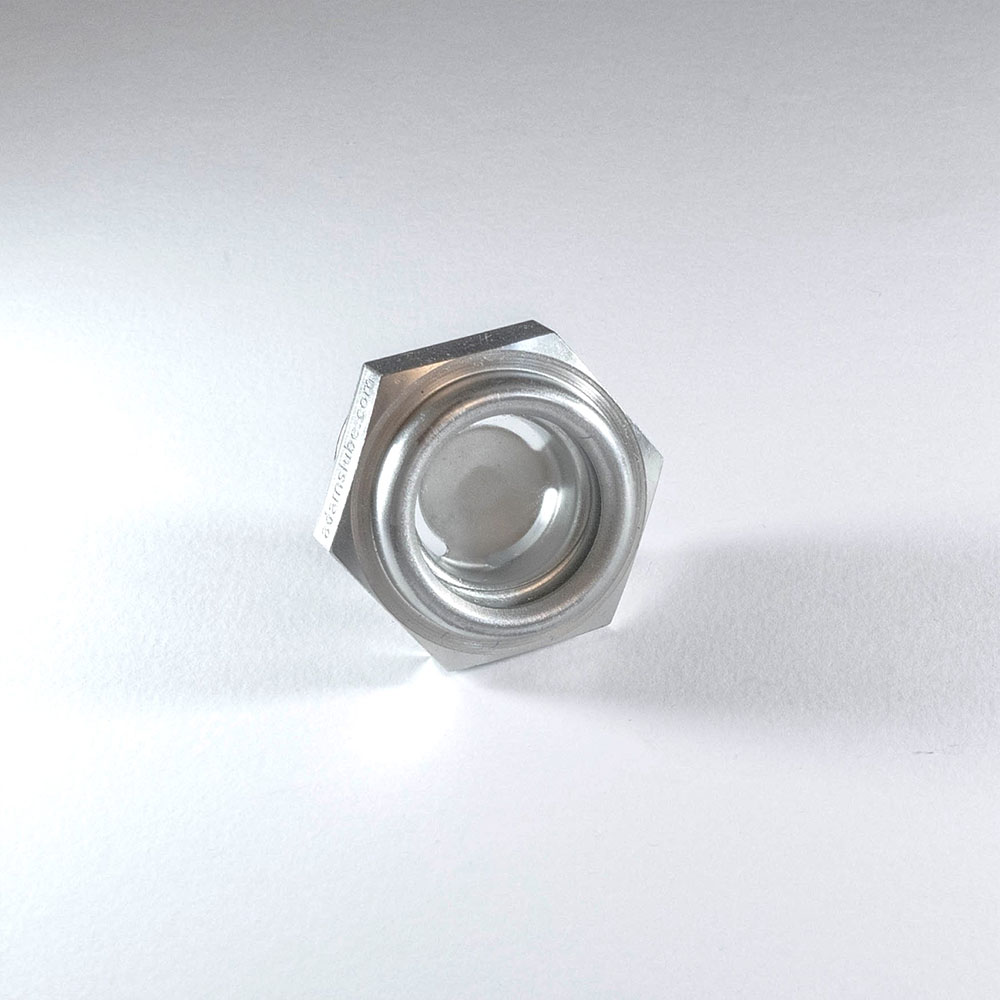

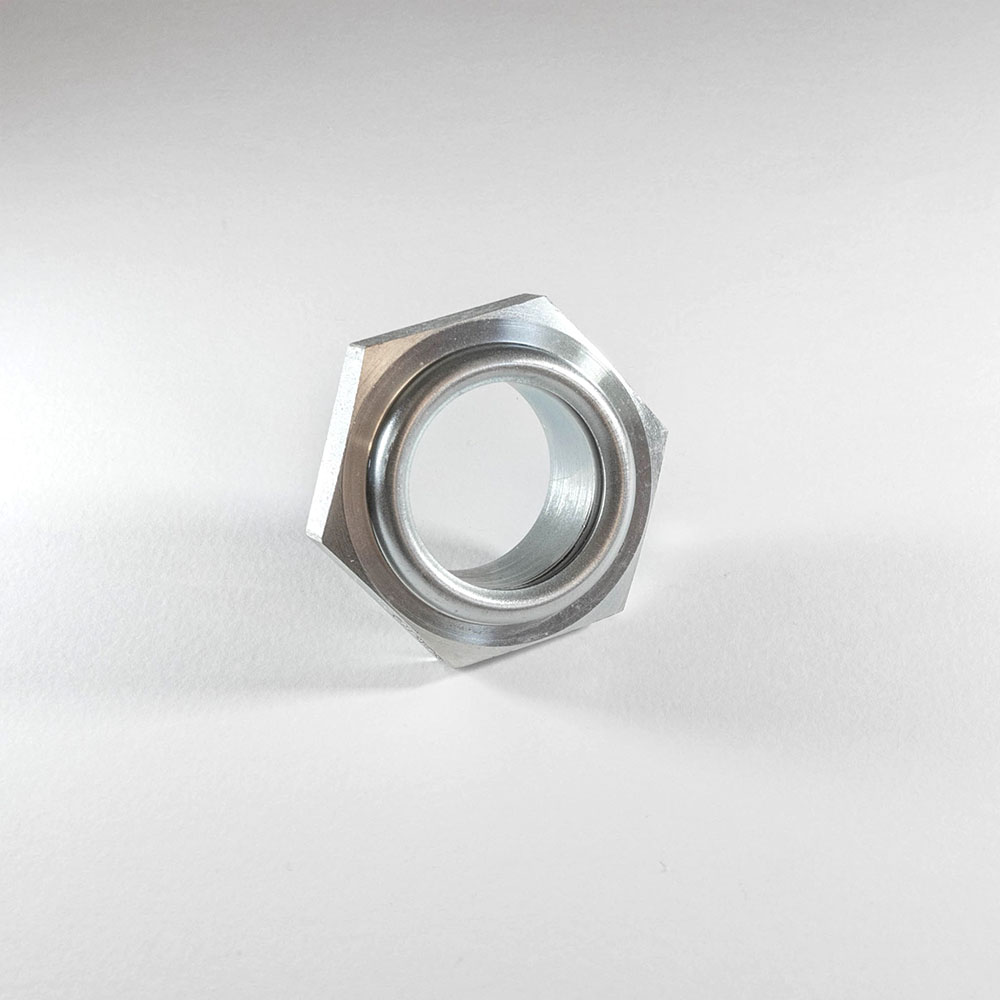

STEEL –
With Toughened Glass Window

Material – STEEL, GLASS Finish – ZINC PLATE
Maximum Working Pressure 10 bar.
Maximum Working Temperature 100 degree C

Add suffix ‘R’. to part no. if reflector is required, eg BWS 4043R



Product Code A B mm C mm D mm E mm
BWS4042
BWS4052
BWS4043
BWS4053
BWS4044
BWS4054
BWS4045
BWS4055
BWS4046		 3/4 BSP
3/4 NPT
1 BSP
1 NPT
1 1/4 BSP
1 1/4 NPT
1 1/2 BSP
1 1/2 NPT
2 BSP		 12.7
20.6
15.9
22.2
15.9
26
15.9
26
17		 25.4
33.3
33
39.3
33
39.3
33
42
34.9		 19.1
19.1
25.4
25.4
31.8
31.8
38.1
38.1
49.0		 33.0
33.0
42.4
42.4
52.1
52.1
61.2
61.2
69.9

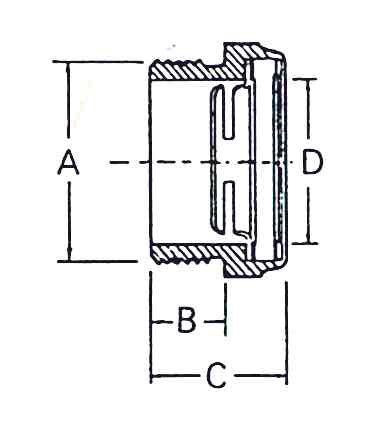

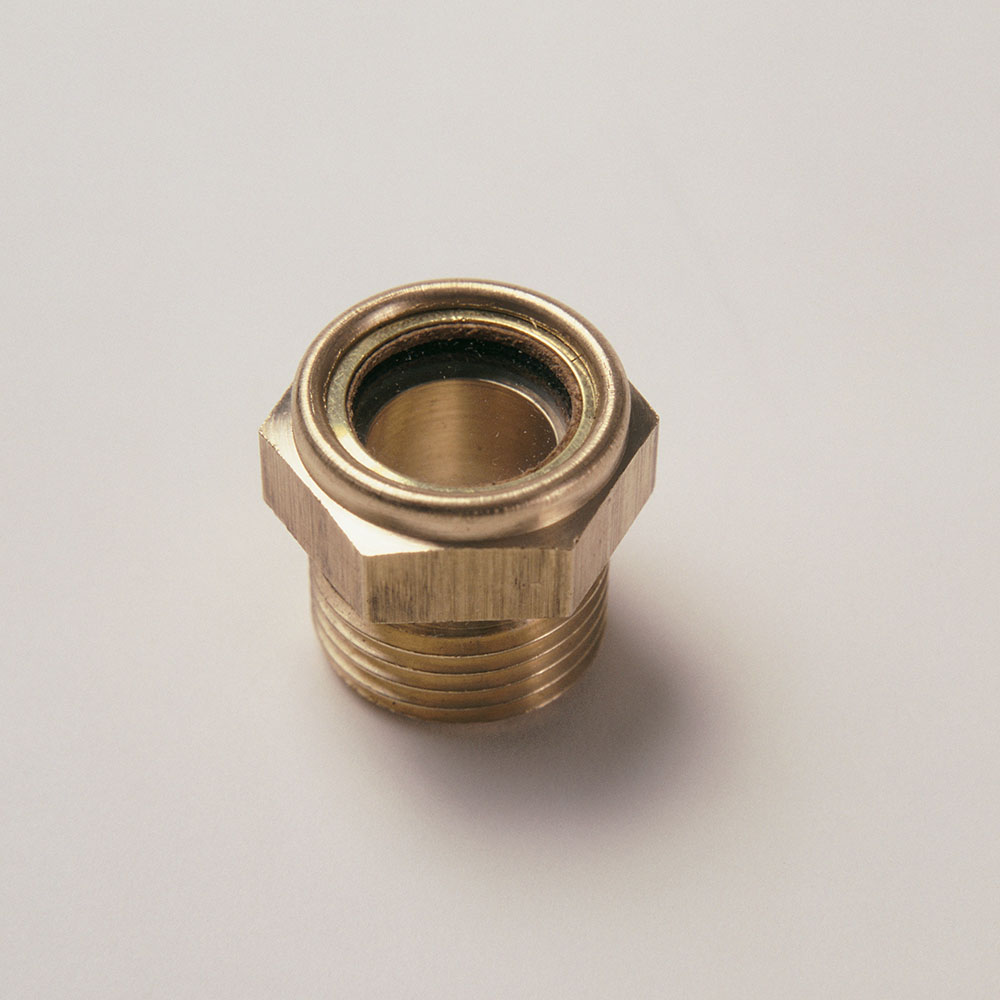

BRASS –
With Perspex Window

Material – BRASS, PERSPEX Finish – NATURAL
Maximum Working Pressure 0.7 bar.
Maximum Working Temperature 70 degree C



Product Code A B mm C mm D mm E mm
BW4040P
BW4041P		 3/8 BSP
1/2 BSP		 11.1
13.5		 17.3
23.8		 11.1
12.7		 19.1
23.4

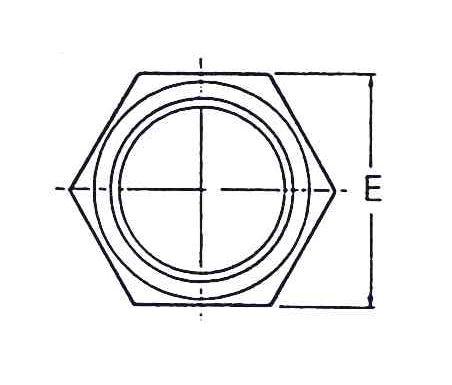

BRASS –
With Toughened Glass Window

Material – BRASS, GLASS Finish – NATURAL
Maximum Working Pressure 0.7 bar.
Maximum Working Temperature 1000 C

BW4041 available with reflector add suffix ‘R’. eg BW4041PR



Product Code A B mm C mm D mm E mm
BW4040TG
BW4041TG		 3/8 BSP
1/2 BSP		 11.1
13.5		 17.3
23.8		 11.1
12.7		 19.1
23.4
