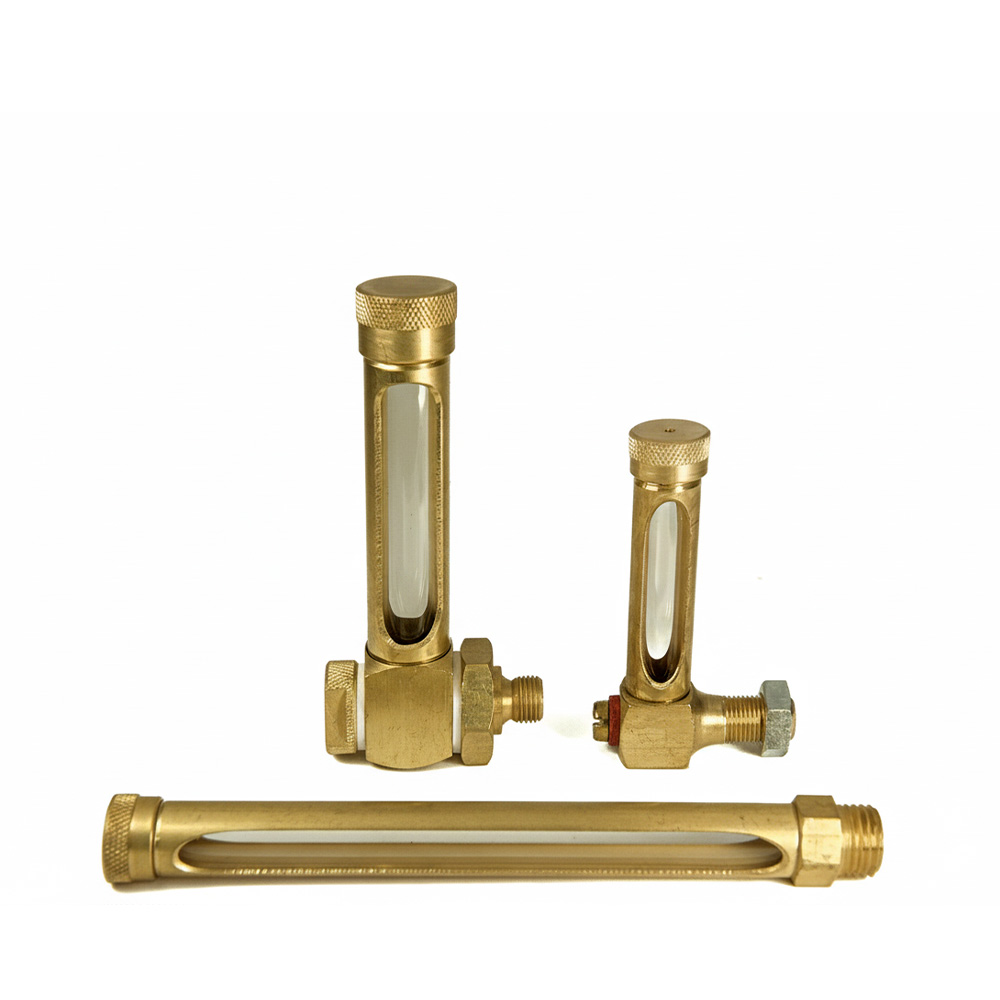

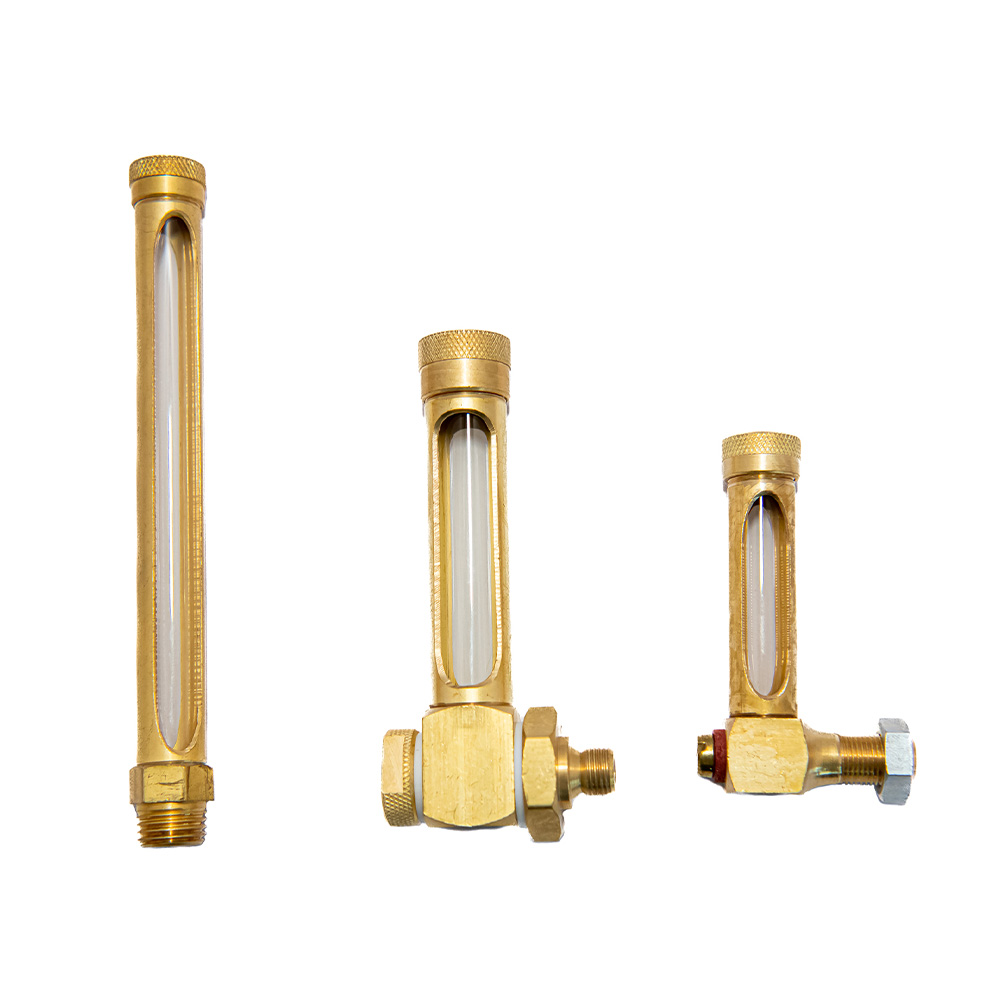

WITH LOCKNUT (DIN 3018)
Material – BRASS, GLASS Finish – NATURAL
Maximum WorkingTemperature 90 degree C
| Product Code | A | B mm | C mm | D mm |
| FGM 150 FGM 160 FGM 180 |
1/8 BSP | 50 60 80 |
13 13 13 |
27 27 27 |
| FGM 250 FGM 260 FGM 280 FGM 2100 FGM 2125 FGM 2150 FGM 2175 FGM 2200 FGM 2250 FGM 2300 |
1/4 BSP | 50 60 80 100 125 150 175 200 250 300 |
13 13 13 13 13 13 13 13 13 13 |
27 27 27 27 27 27 27 27 27 27 |
| FGM 350 FGM 360 FGM 380 FGM 3100 FGM 3125 FGM 3150 FGM 3175 FGM 3200 FGM 3250 FGM 3300 |
3/8 BSP | 50 60 80 100 125 150 175 200 250 300 |
13 13 13 13 13 13 13 13 13 13 |
34 34 34 34 34 34 34 34 34 34 |
| FGM 4100 FGM 4125 FGM 4150 FGM 4200 FGM 4250 |
1/2 BSP | 100 125 150 200 250 |
16 16 16 16 16 |
38 38 38 38 38 |
WITH BANJO COUPLING (DIN 3018)
Material – BRASS, GLASS. Finish – NATURAL
Maximum Working Temperature 90 degree C
3/8 BSP, 1/2 BSP and NPT sizes available on request
| Product Code | A | B mm | C mm | D mm |
| FGB 160 FGB 180 FGB 1100 FGB 1125 |
1/8 BSP | 60 80 100 125 |
16 16 16 16 |
28 28 28 28 |
| FGB 250 FGB 260 FGB 280 FGB 2100 FGB 2125 FGB 2150 FGB 2175 FGB 2200 FGB 2250 FGB 2300 |
1/4 BSP | 50 60 80 100 125 150 175 200 250 300 |
16 16 16 16 16 16 16 16 16 16 |
30 30 30 30 30 30 30 30 30 30 |
VERTICAL (DIN 3018)
Material – BRASS, GLASS. Finish – NATURAL
Maximum Working Temperature 90 degree C
3/8 BSP, 1/2 BSP and NPT sizes available on request
| Product Code | A | B mm | C mm | D mm |
| FGV 250 FGV 260 FGV 280 FGV 2100 FGV 2125 FGV 2150 FGV 2175 FGV 2200 FGV 2250 FGV 2300 |
1/4 BSP | 50 60 80 100 125 150 175 200 250 300 |
13 13 13 13 13 13 13 13 13 13 |
8 8 8 8 8 8 8 8 8 8 |
OIL LINE FLOW
Material – BRASS, GLASS, NITRILE. Finish – NATURAL.
Maximum Working Pressure 2 bar.
Maximum Working Temperature 80 degree C
| Product Code | A | B mm | C mm | D mm |
| OL 4279 OL 4280 OL 4281 OL 4282 OL 4283 OL 4283 OL 4285 OL 4286 |
1/8 BSP 1/8 NPT 1/4 BSP 1/4 NPT 3/8 BSP 3/8 NPT 1/2 BSP 1/2 NPT |
1/8 BSP 1/8 NPT 1/4 BSP 1/4 NPT 3/8 BSP 3/8 NPT 1/2 BSP 1/2 NPT |
70 70 62 62 76 76 70 70 |
19 19 21 21 31.75 31.75 32 32 |
FLANGED
Material – BRASS, GLASS Finish – NATURAL
Maximum Working Pressure 1 bar.
Maximum Working Temperature 100 degree C
| Product Code | A mm | B mm | C mm | D mm | E mm | F mm | G mm |
| CW 4032 CW 4033 |
31.8 38.1 |
57.2 65.1 |
46.8 54.8 |
4.8 4.8 |
9.5 9.5 |
17.5 17.5 |
31.8 38.1 |
DRIVE IN
Material – STEEL, PERSPEX Finish – ZINC PLATE
Maximum Working Pressure 0. 7 bar.
Maximum Working Temperature 70 degree C with 0 . 2 bar pressure
| Product Code | Hole Diameter | A | B mm | C mm | D mm |
| DW 4064 DW 4061 DW 4062 DW 4063 |
22.23 – 22.28 31.75 – 31.80 38.10 – 38.15 50 . 80 – 50.85 |
22.30 – 22.35 31. 83 – 31.88 38.18 – 38.23 50.88 – 50.93 |
17.5 25.4 31.8 44.5 |
7.1 8.7 9.5 10.8 |
0.4 0.4 0.4 0.4 |
