Fixed Constant Level Oilers
Adamslube are one of the premier Fixed constant level oiler distributors in the UK and worldwide. If you are looking for oilers, lubricators and centralised lubrication systems, or Fixed constant level oiler distributors for use in industrial applications please contact us today. We have distributors in over 35 locations worldwide and can assist you with all of your oiling and lubrication needs for industry.
ZINC DIE-CAST BODY – PLASTIC BOTTLE
Maximum operating temperature 65 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
| ACL7567A ACL7568A ACL7572A ACL7573A ACL7577A ACL7578A |
51 51 57 57 64 64 |
82 82 87 87 94 94 |
1/4 BSP 1/4 NPT 1/4 BSP 1/4 NPT 1/4 BSP 1/4 NPT |
7 7 7 7 7 7 |
51 51 51 51 51 51 |
85 ml 85 ml 115 ml 115 ml 158 ml 158 ml |
STEEL BODY – PLASTIC BOTTLE
Maximum operating temperature 65 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
| ACL7563A ACL7564A ACL7579A ACL7580A ACL7581A ACL7582A ACL7583A ACL7584A |
51 51 51 51 57 57 64 64 |
82 82 82 82 87 87 94 94 |
1/8 BSP 1/4 NPT 1/4 BSP 1/4 NPT 1/4 BSP 1/4 NPT 1/4 BSP 1/4 NPT |
7 7 7 7 7 7 7 7 |
51 51 51 51 51 51 51 51 |
85 ml 85 ml 85 ml 85 ml 115 ml 115 ml 158 ml 158 ml |
BAYONET PUSH IN TYPE – STEEL BODY WITH PLASTIC BOTTLE WITH FILL CONTROL VALVE
Maximum operating temperature 65 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
| ABL7528 ABL7538 |
51 64 |
93 104 |
1/4 BSP 1/4 BSP |
7 7 |
51 51 |
85 ml 158 ml |
BAYONET TYPE – STEEL BODY WITH GLASS BOTTLE
| Product No | A | B | C | D | E | Capacity |
| ABL7540 | 61 | 104 | 1/4 BSP | 7 | 51 | 120 ml |
ZINC DIE-CAST BODY – GLASS BOTTLE
Maximum operating temperature 100 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
| ACL7595A ACL7596A |
61 61 |
92 92 |
1/4 BSP 1/4 NPT |
7 7 |
51 51 |
120 ml 120 ml |
STEEL BODY – GLASS BOTTLE
Maximum operating temperature 100 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
|
ACL7597 ACL7598 |
61 61 |
92 92 |
1/4 BSP 1/4 NPT |
7 7 |
51 51 |
120 ml 120 ml |
SERVICE SPARES: Replacement Glass Bottles and Washers are available.

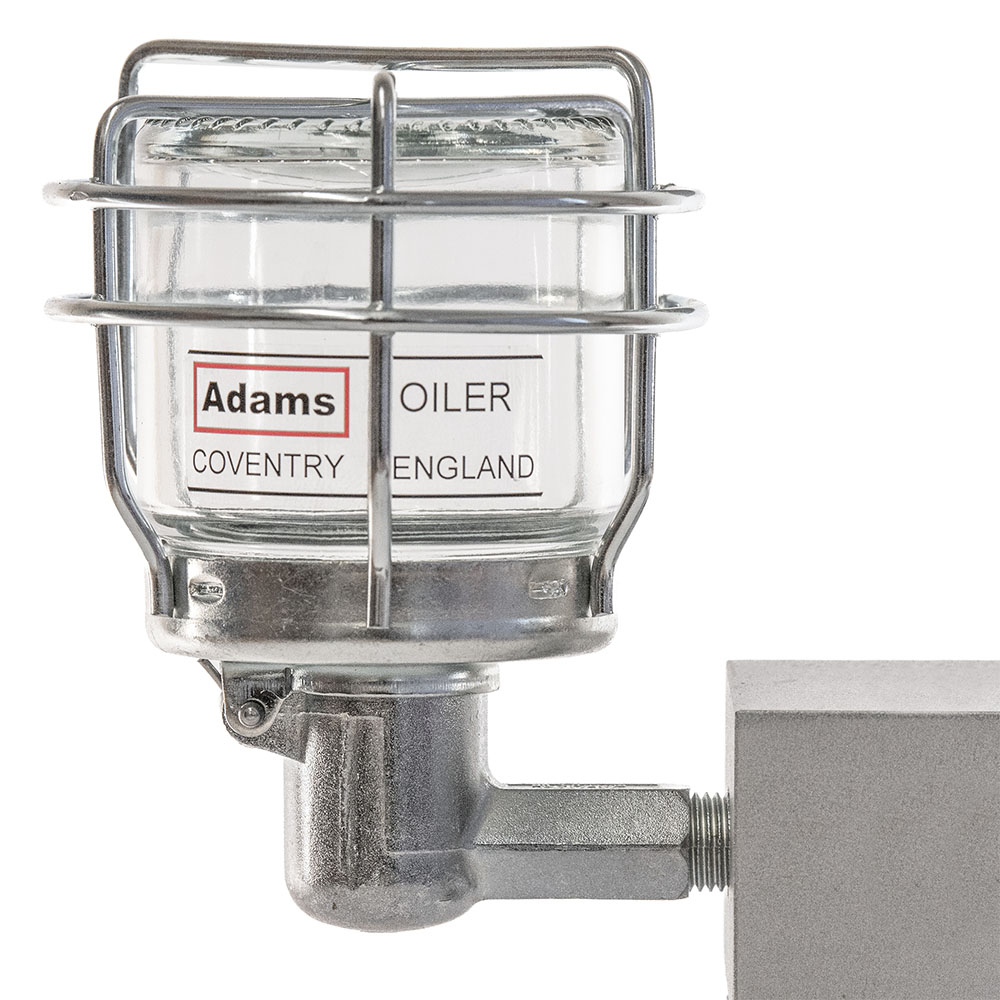

WIRE GUARD for 120 ml capacity oiler
Material – STEEL Finish – ZINC PLATE
| Product No | A mm | B mm | C mm | D mm | E mm |
| WG120 | 60.3 | 61.9 | 62.7 | 6.35 | 25.4 |
